Liftstart
Liftstart is a simple, intuitive and safe stage winch, suitable for theatres, auditoriums and conference centres, with different load capacities, including over 2 tonnes upon request.
Available in two versions with cable winding on a drum or discs.
Both are equipped with an asynchronous electric motor with double safety brake on the input shaft, complete with safety devices, on-board control panel and portable push-button panel. Higher capacities available upon request.

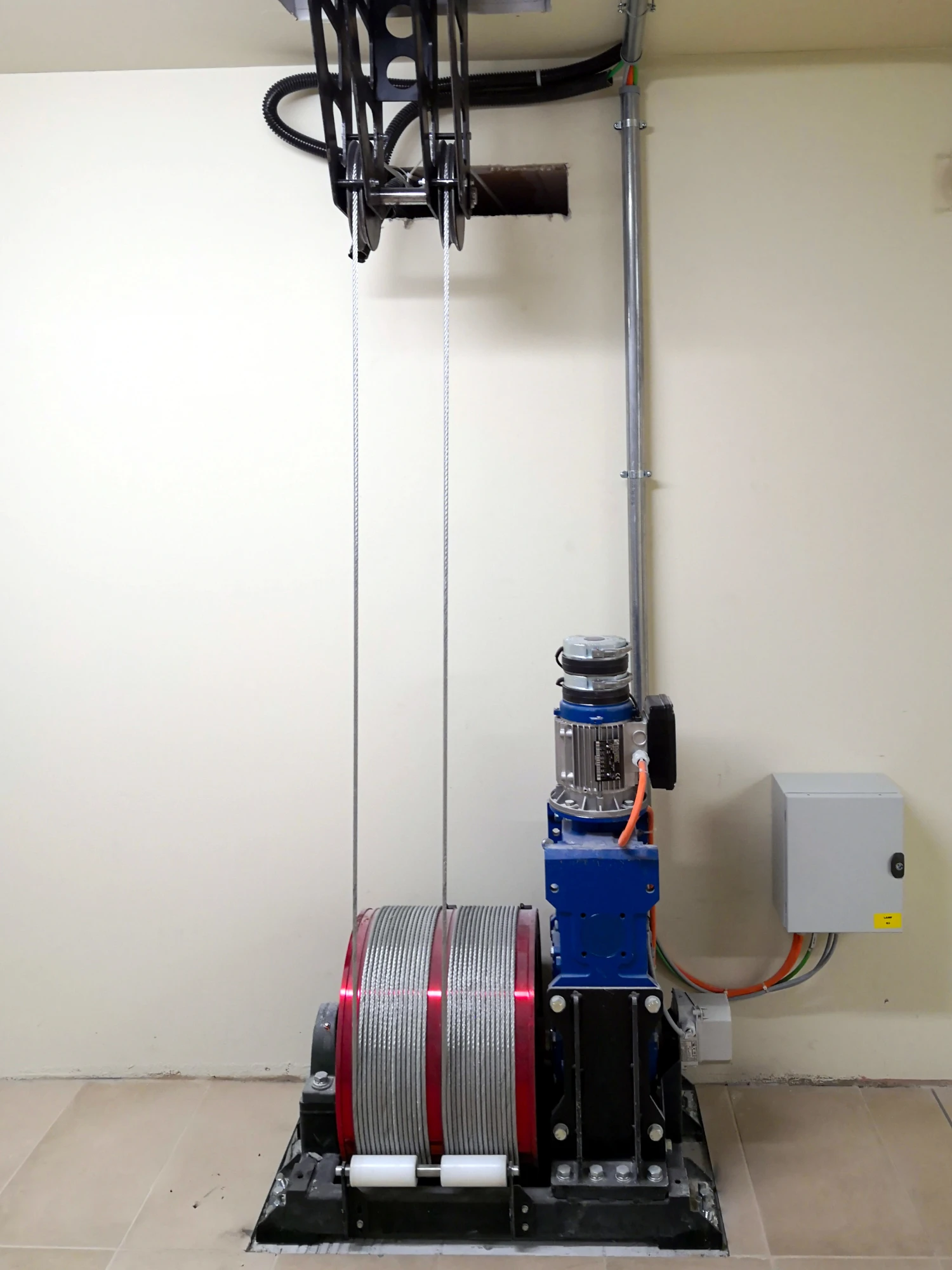

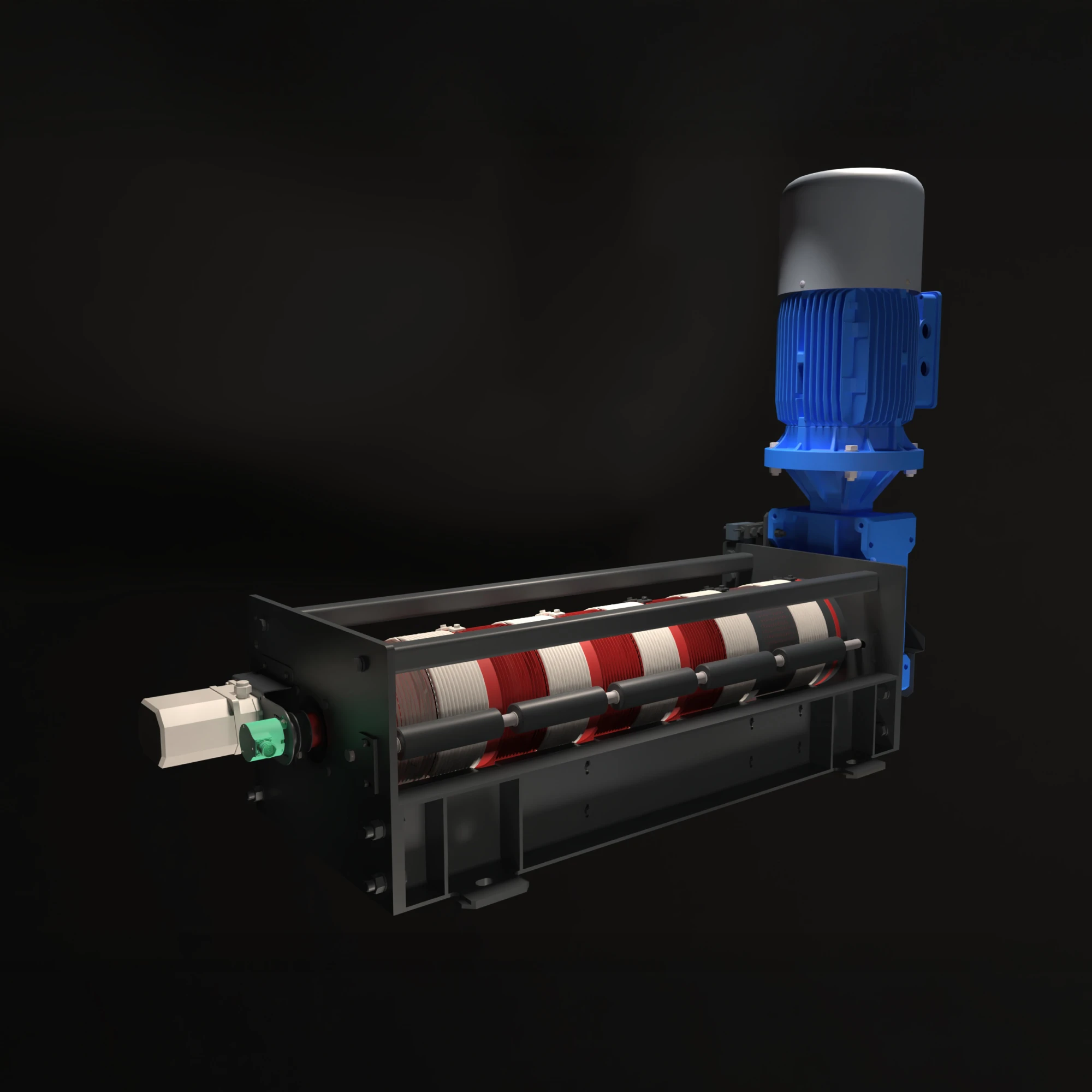

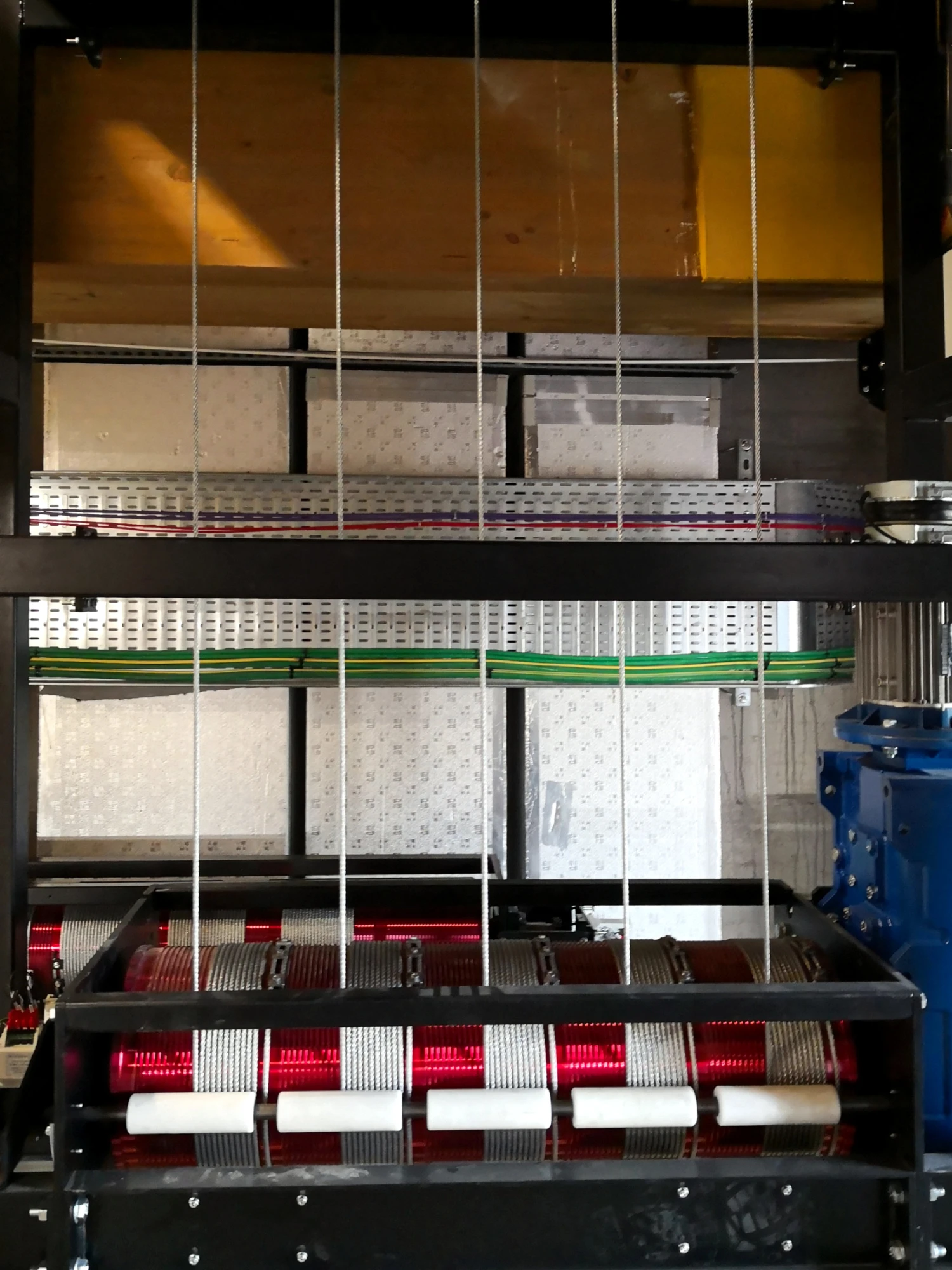

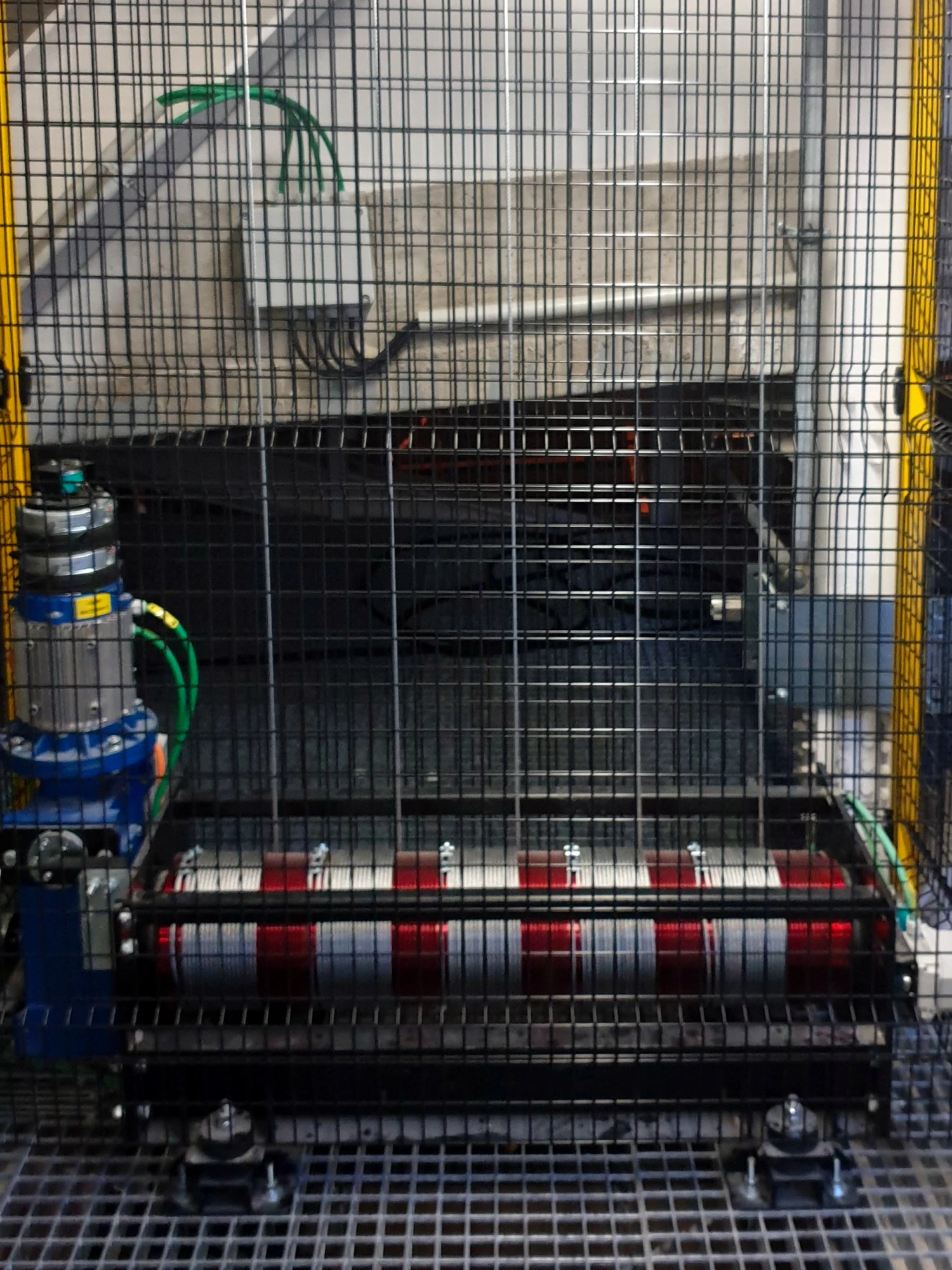

Drum Liftstart Versions
Model LS35
Technical specifications
Number of steel cables: 3 – 6
Winding: drum
Steel Cable diameter: 5 mm
Rated capacity: 350 Kg
Motor power: 0.75 KW
Fixed speed: 6 m/min
Variable speed: upon request
Loading bar travel: 18 metres
Limit switch: 4-contact rotary
Encoder: absolute / relative upon request
Load cell: upon request
Weight: 300 Kg (3-4 cables) 350 Kg (5-6 cables)
Model LS50
Technical specifications
Number of steel cables: 3 – 6
Winding: drum
Steel Cable diameter: 6 mm
Rated capacity: 500 Kg
Motor power: 1.1 KW
Fixed speed: 8 m/min
Variable speed: upon request
Loading bar travel: 18 metres
Limit switch: 4-contact rotary
Encoder: absolute / relative upon request
Load cell: upon request
Weight: 350 Kg (3-4 cables) 400 Kg (5-6 cables)
Model LS100
Technical specifications
Number of steel cables: 5 – 8
Winding: drum
Steel Cable diameter: 6 mm
Rated capacity: 1000 Kg
Motor power: 1.5 KW
Fixed speed: 5 m/min
Variable speed: upon request
Loading bar travel: 18–25 metres
Limit switch: 4-contact rotary
Encoder: absolute / relative
Load cell: upon request
Weight: 450 Kg (5-6 cables) 500 Kg (7-8 cables)
Model LS150
Technical specifications
Number of steel cables: 5 – 8
Winding: drum
Steel Cable diameter: 7 mm
Rated capacity: 1500 Kg
Motor power: 2.2 KW
Fixed speed: 5 m/min
Variable speed: upon request
Loading bar travel: 18–25 metres
Limit switch: 4-contact rotary
Encoder: absolute / relative
Load cell: upon request
Weight: 500 Kg (5-6 cables) 550 Kg (7-8 cables)

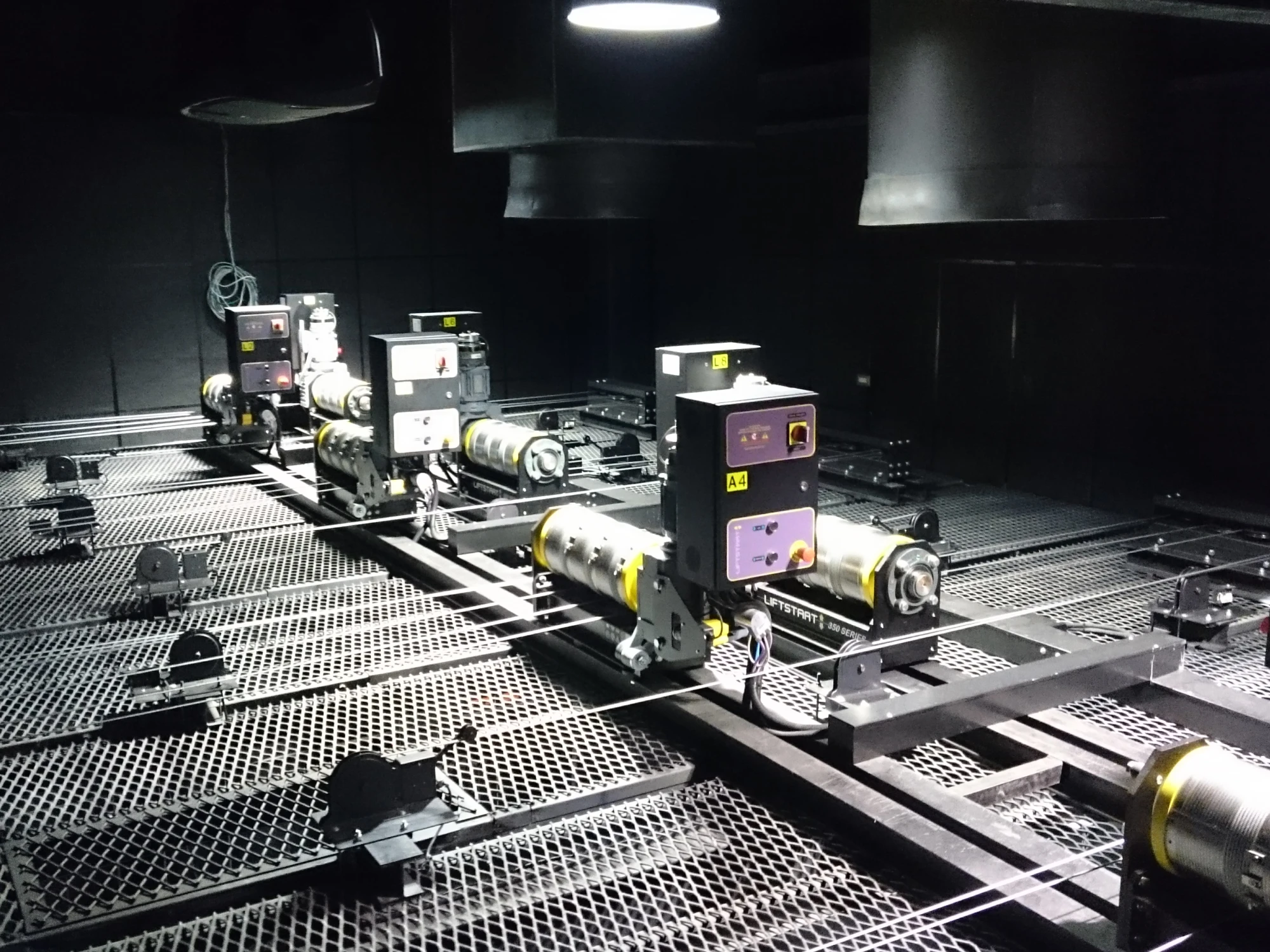

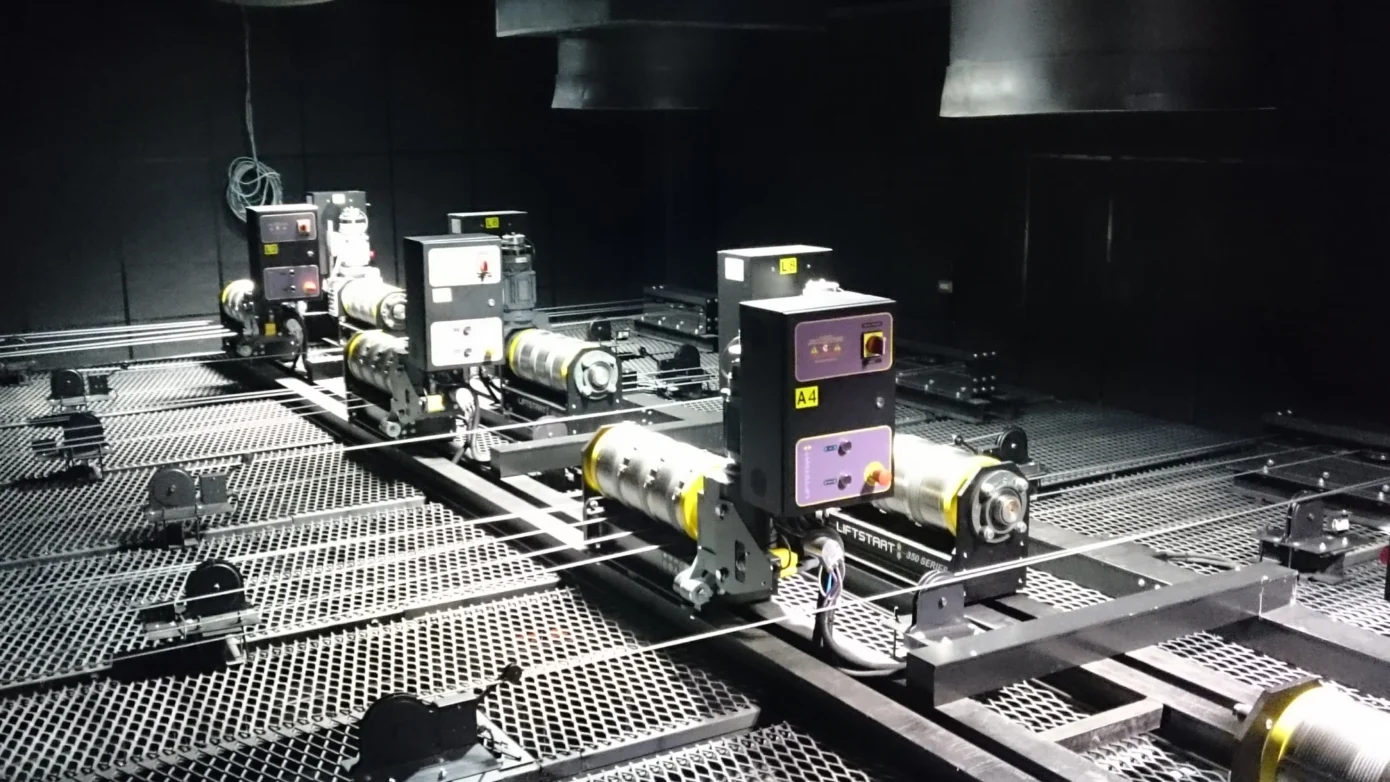

Disc Liftstart Versions
Model LS10 PW
Technical specifications
Number of steel cables: 1-2
Winding: stacked discs
Steel Cable diameter: 4 mm
Rated capacity: 100 Kg
Motor power: 0.25 kW
Fixed speed: average 5 m/min
Loading bar travel: 15 metres
Limit switch: 4-contact rotary
Encoder: upon request
Load cell: upon request
Weight: 55 Kg (1 cable) 60 Kg (2 cables)
Model LS35 PW
Technical specifications
Number of cables: 3 – 5
Winding: stacked discs
Cable diameter: 5 mm
Rated capacity: 350 Kg
Motor power: 1.1 kW
Fixed speed: average 8 m/min
Loading bar travel: 15 metres
Limit switch: 4-contact rotary
Encoder: upon request
Load cell: upon request
Weight: 110 Kg (3-4 cables) 130 Kg (5 cables)
Model LS50 PW
Technical specifications
Number of cables: 4 – 5
Winding: stacked discs
Cable diameter: 5 mm
Rated capacity: 500 Kg
Motor power: 1.5 kW
Fixed speed: average 8 m/min
Loading bar travel: 15 metres
Limit switch: 4-contact rotary
Encoder: upon request
Load cell: upon request
Weight: 160 Kg (5 cables)
