Liftech Live

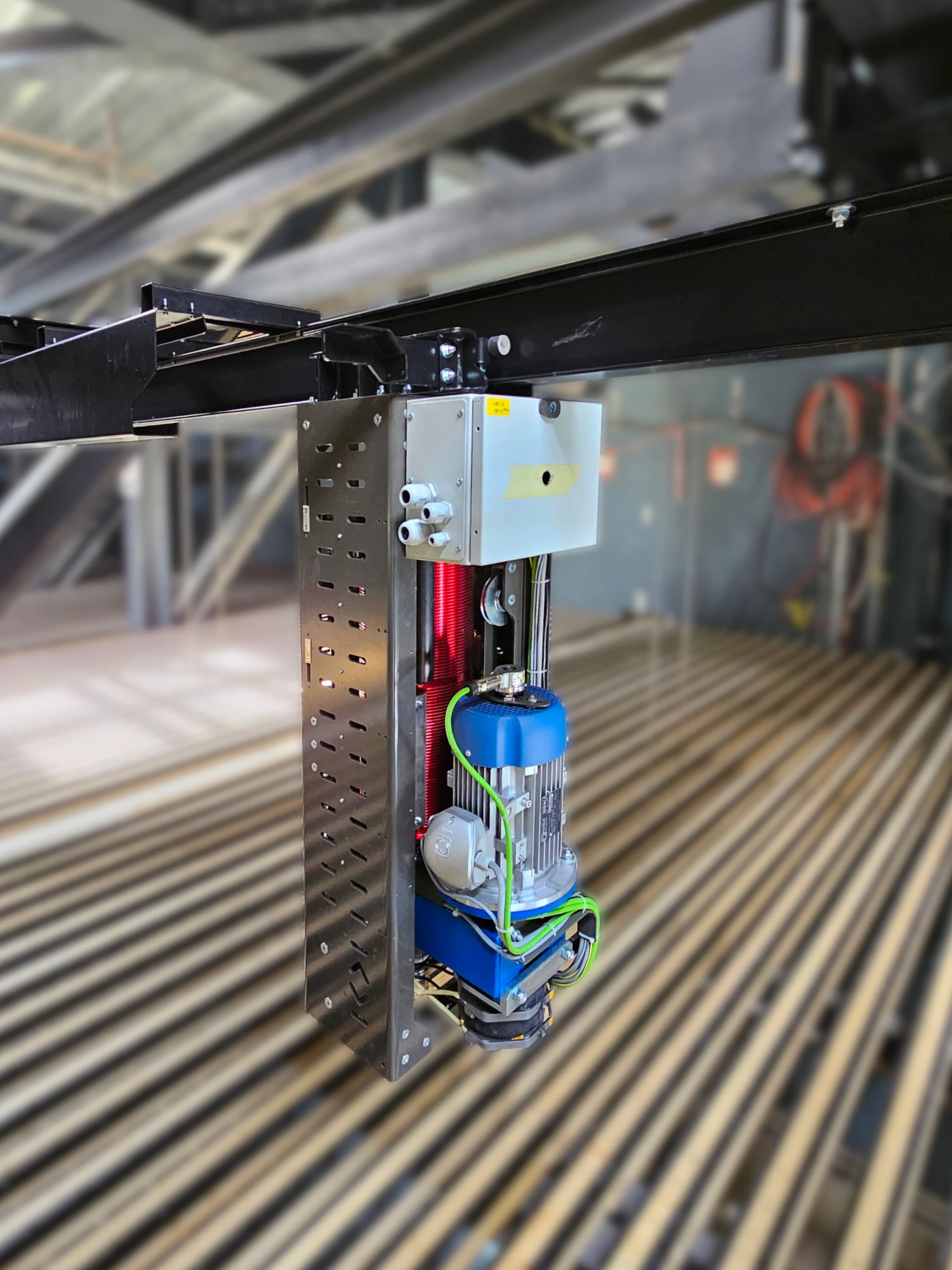

Liftech Live is a precise, adjustable-speed fly line with two coupled ropes, ideal for stage movements in opera houses, production theatres and television studios.

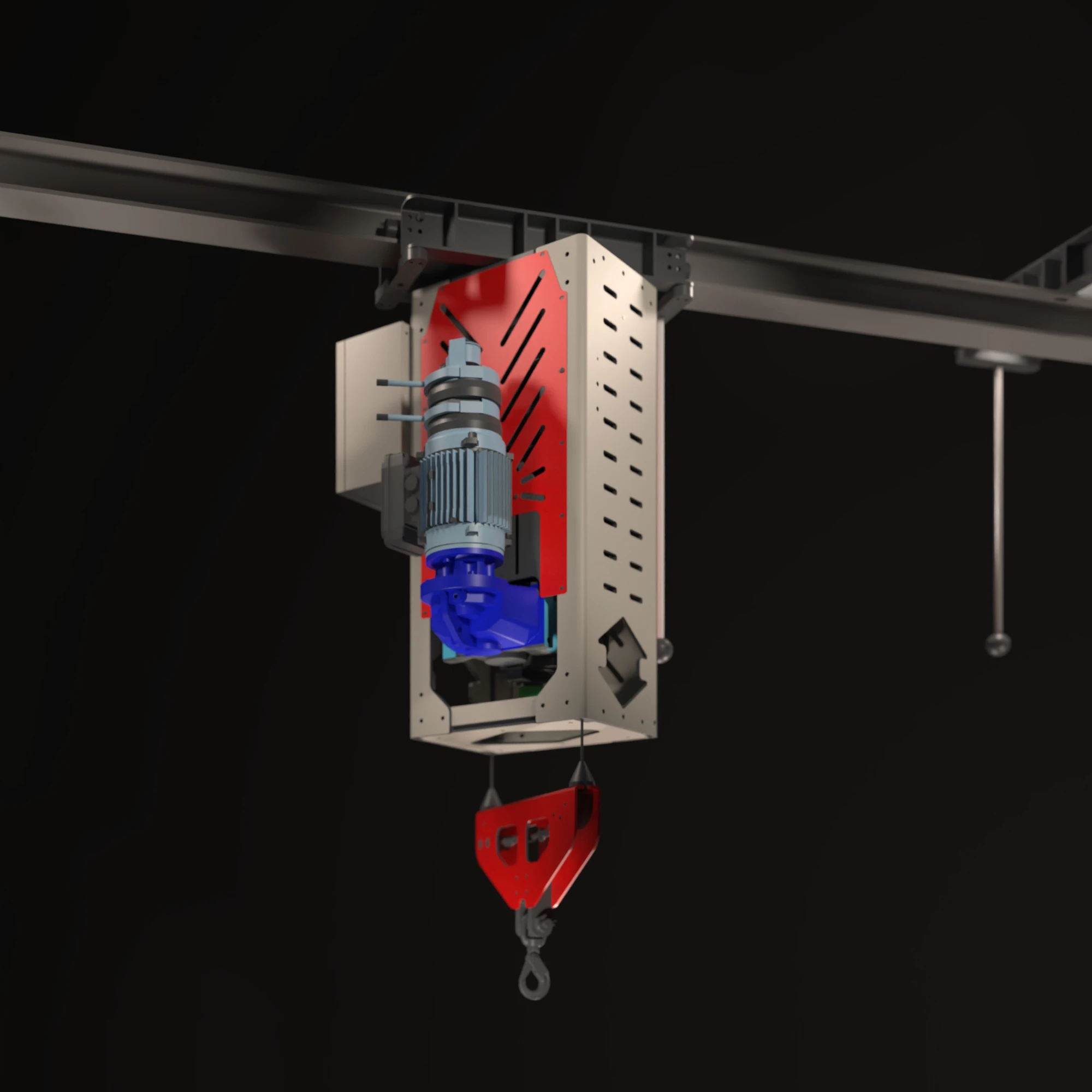

Available with two load capacities, it is designed for precise and accurate stage movements. The two cables are hitched to the ends of a lifting beam, at the centre of which is the single point of attachment for the load.
The use of coupled cables prevents the beam from rotating. Liftech Live can be suspended from a fixed point or from a trolley, that allows horizontal X/Y traversing.
Versions
Model LT Live 25-2W
Technical specifications
Capacity on the hook: 250 daN
Self-weight: 190 kg (excluding the X/Y traversing system)
Adjustable speed: 15 m/min
Hook travel: 20 m
Number of cables: 2
Cable diameter: 5 mm
Positioning error: ± 5 mm
Motor power: 1.1 kW
Brake type: Double electromagnetic with negative operation integrated in the motor
Reduction gear: Long pendular parallel axis
Limit switch: Mechanical microswitches
Encoders: Incremental + Absolute multi-turn
Load cell: Absent Possibility of mounting on anchoring point
Model LT Live 35-2W
Technical specifications
Capacity on the hook: 350 daN
Self-weight: 210 kg (excluding the X/Y traversing system)
Adjustable speed: 15 m/min
Hook travel: 20 m
Number of cables: 2
Cable diameter: 5 mm
Positioning error: ± 5 mm
Motor power: 1.5 kW
Brake type: Double electromagnetic with negative operation integrated in the motor
Reduction gear: Long pendular parallel axis
Limit switch: Mechanical microswitches
Encoders: Incremental + Absolute multi-turn
Load cell: Absent Can be mounted on an anchoring point
