Lift ONE

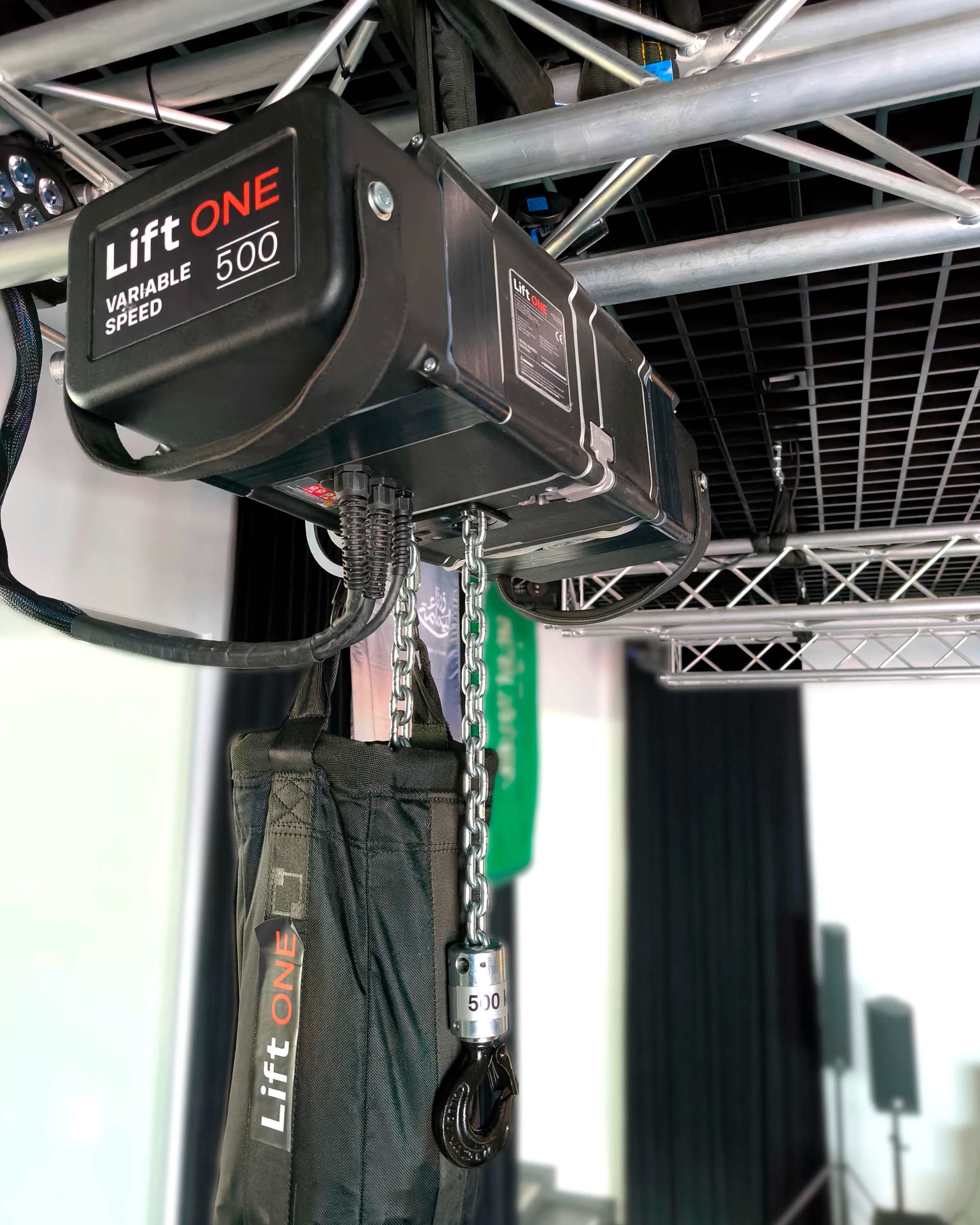

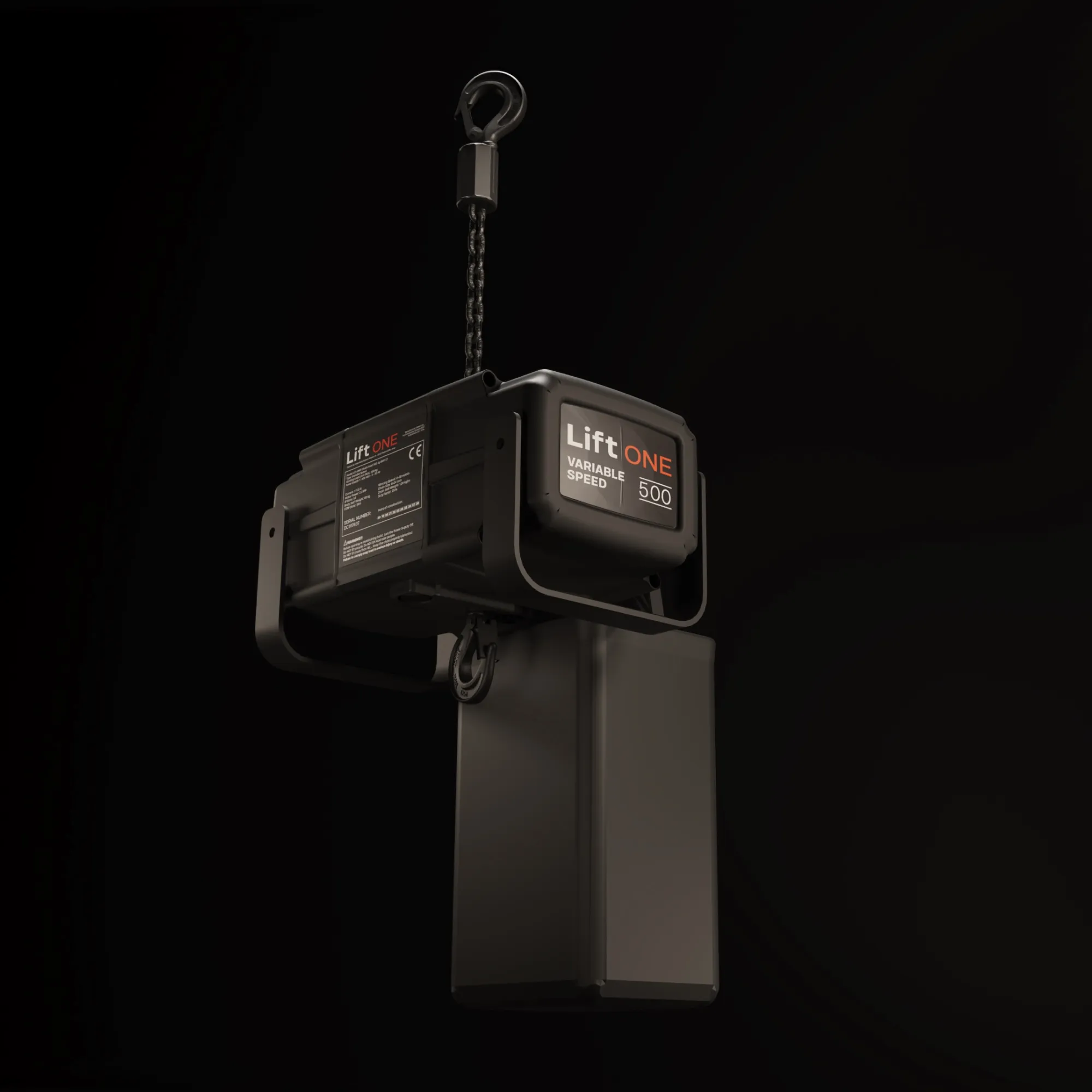

Lift ONE is a chain hoist designed for the precise, smooth and synchronised positioning of LED walls, lighting systems and stage sets.
Ideal for professional environments where safety and precision are paramount.
Main characteristics
- Memory: recording of configuration sequences
- Monitoring: real-time load display by means of the load cell
- Tracking: reaching preset heights and continuous monitoring of position and speed thanks to the absolute and incremental encoder
- Control system: ease of use and guaranteed safety, thanks to the Curio management software and the dedicated control and drive units.
Technical specifications
Lift ONE 500
Rated capacity: 500 kg
Lifting speed: 0 -24 m/min
Motor power: 2.2 kW
Double DC brake
Load cell: integrated
4-position limit switch
Absolute encoder on the output shaft
Incremental encoder on the input shaft
Safety factor: > 8:1
Conformity: EN 17206
